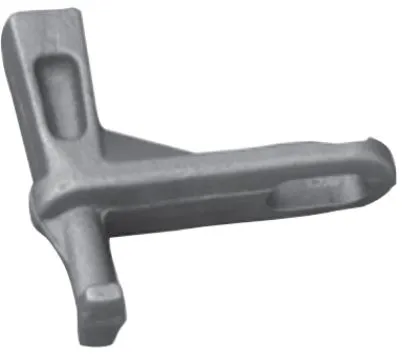

Drop-forged Pusher Dog is a media to connect revertless chain and its attachments. We provide X348, X458 and X678 three different types pusher dog. You can find good characteristics such as high tensile strength, long using life, standard size and competitive price in GZG Drop-forged Pusher Dog.
Drop-forged Pusher Dog-X348
| Chain No. | Dimensions | Weight | Ultimate strength | |||||
| P | B | H | D | A | F | Kg/Pcs | ||
| mm | mm | mm | mm | mm | mm | KN | ||
| X348 | 76.6 | 28.0 | 63.5 | 12.7 | / | / | 0.42 | 110.0 |
| Chain No. | Dimensions | Weight | Ultimate strength | |||||
| P | B | H | D | A | F | |||
| mm | mm | mm | mm | mm | mm | Kg/Pcs | KN | |
| X348 | 76.6 | 28.0 | 60.3 | 12.7 | 38.1 | / | 0.45 | 110.0 |
| Chain No. | Dimensions | Weight | Ultimate strength | |||||
| P | B | H | D | A | F | |||
| mm | mm | mm | mm | mm | mm | Kg/Pcs | KN | |
| X348 | 76.6 | 28.0 | 60.0 | 12.7 | / | 80.0 | 0.65 | 110.0 |
Drop-forged Pusher Dog-X458
| Chain No. | Dimensions | Weight | Ultimate strength | |||||
| P | B | H | D | A | F | |||
| mm | mm | mm | mm | mm | mm | Kg/Pcs | KN | |
| X458 | 102.4 | 35.0 | 55.0 | 16.0 | 8.2 | / | 0.70 | 210.0 |
| Chain No. | Dimensions | Weight | Ultimate strength | |||||
| P | B | H | D | A | F | |||
| mm | mm | mm | mm | mm | mm | Kg/Pcs | KN | |
| X458 | 102.4 | 35.0 | 61.5 | 16.0 | 25.4 | / | 0.75 | 210.0 |
| Chain No. | Dimensions | Weight | Ultimate strength | |||||
| P | B | H | D | A | F | |||
| mm | mm | mm | mm | mm | mm | Kg/Pcs | KN | |
| X458 | 102.4 | 35.0 | 70.3 | 16.0 | / | 92.0 | 1.35 | 210.0 |
Drop-forged Pusher Dog-X678
| Chain No. | Dimensions | Weight | Ultimate strength | |||||
| P | B | H | D | A | F | |||
| mm | mm | mm | mm | mm | mm | Kg/Pcs | KN | |
| X678 | 153.2 | 51.0 | 64.0 | 22.0 | / | / | 1.65 | 380.0 |
| Chain No. | Dimensions | Weight | Ultimate strength | |||||
| P | B | H | D | A | F | |||
| mm | mm | mm | mm | mm | mm | Kg/Pcs | KN | |
| X678 | 153.2 | 51.0 | 82.0 | 22.0 | / | 100.0 | 2.30 | 380.0 |
Please read before your inquiry:
1. Which type of pusher dog do you need?
2. How many pushers do you need,
3. Which port should we send the products?
4.Do you have a drawing if your pusher is non-standard?
